Odin Ice Bath

There are 3 sizes: the Odin Original, XL and Dual. Each of these sizes comes in a Lite version and a Pro version.

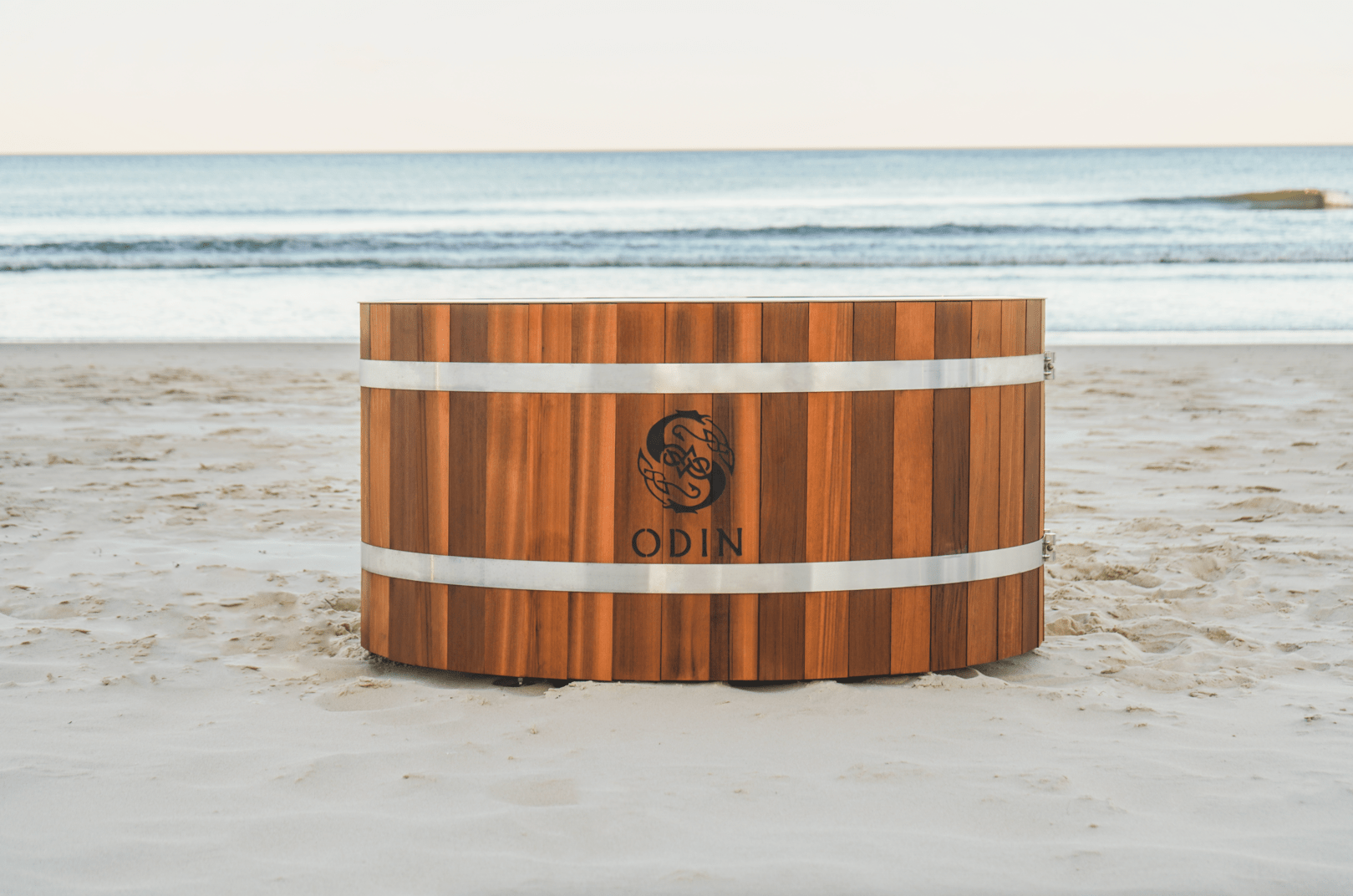

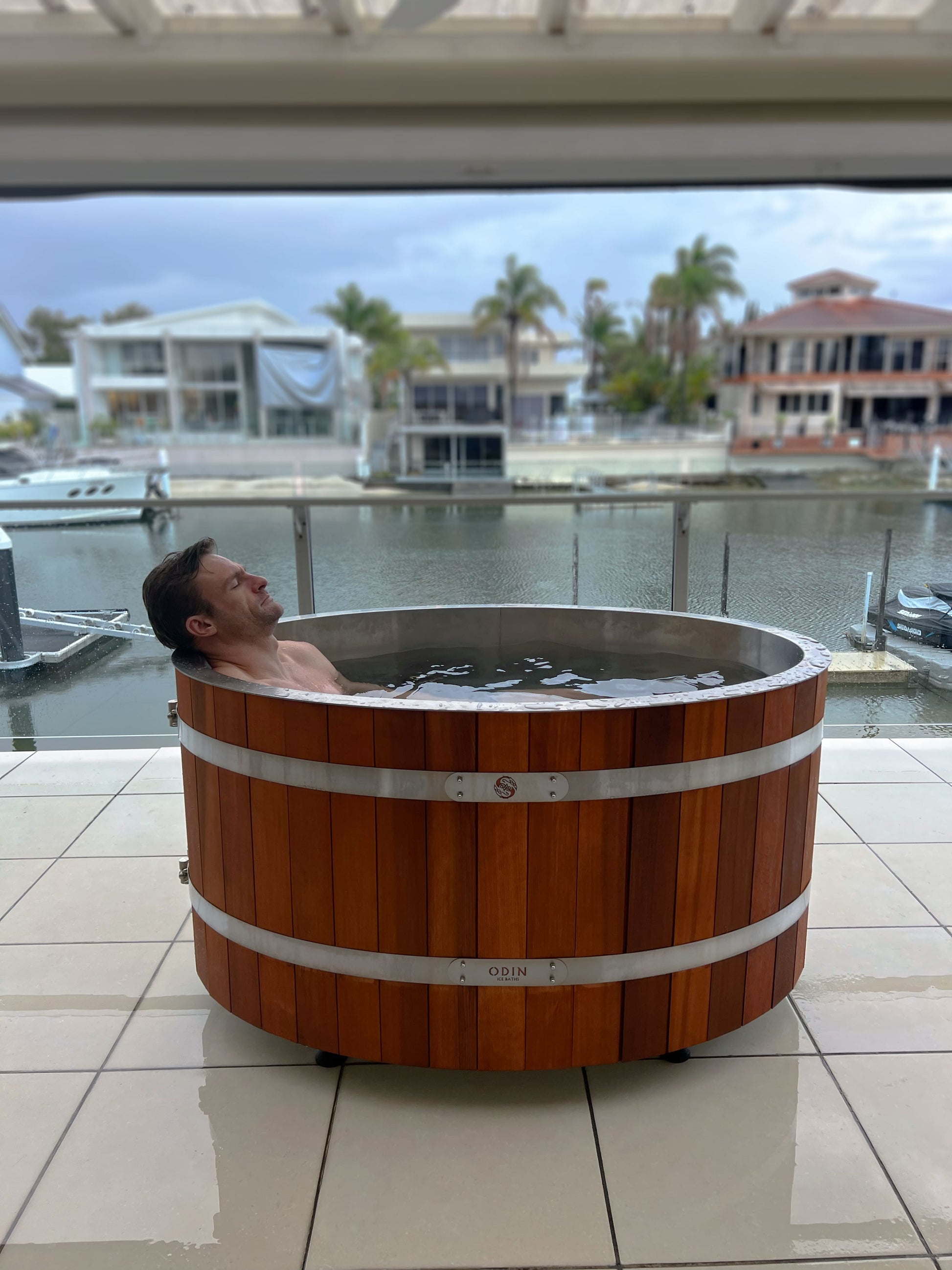

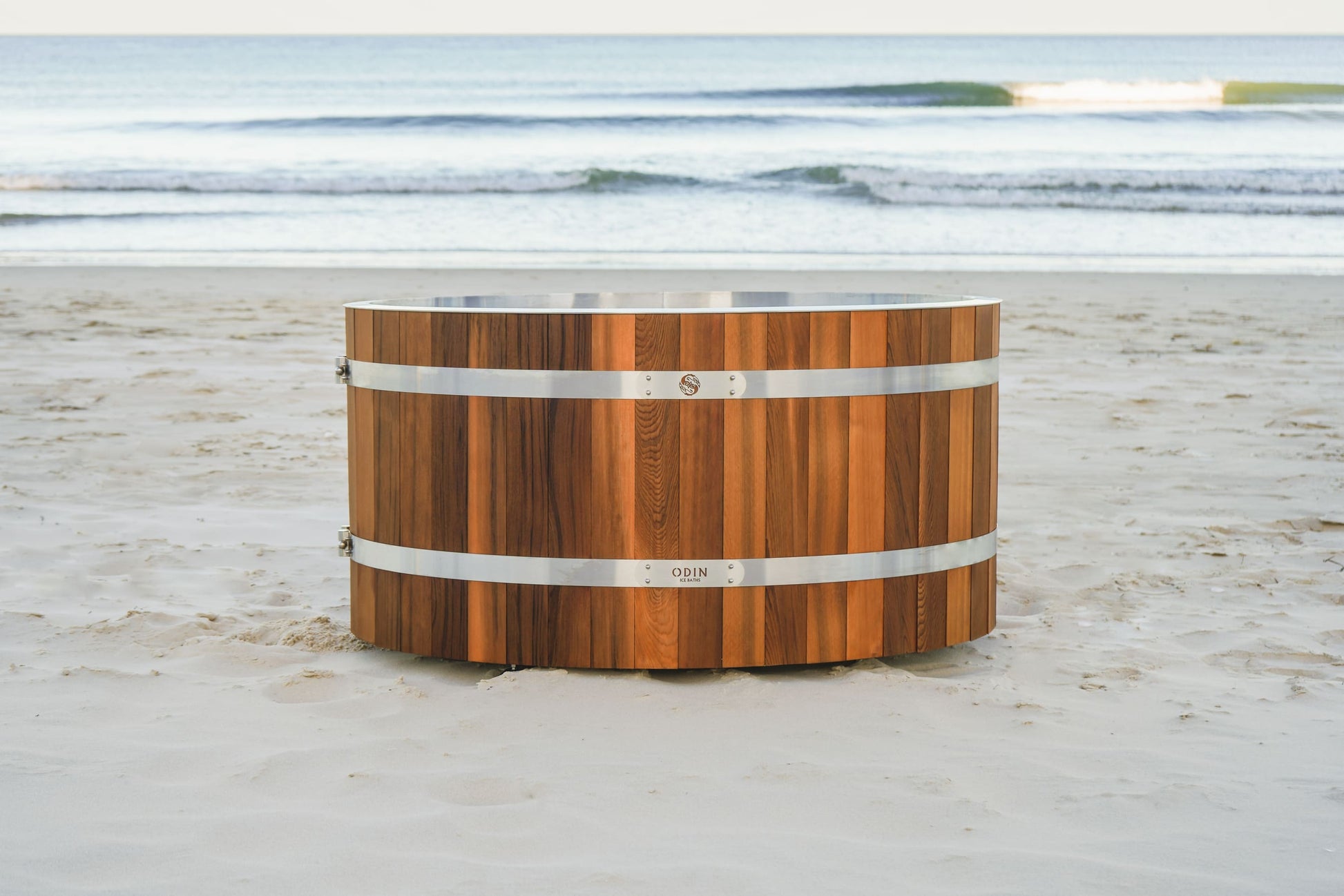

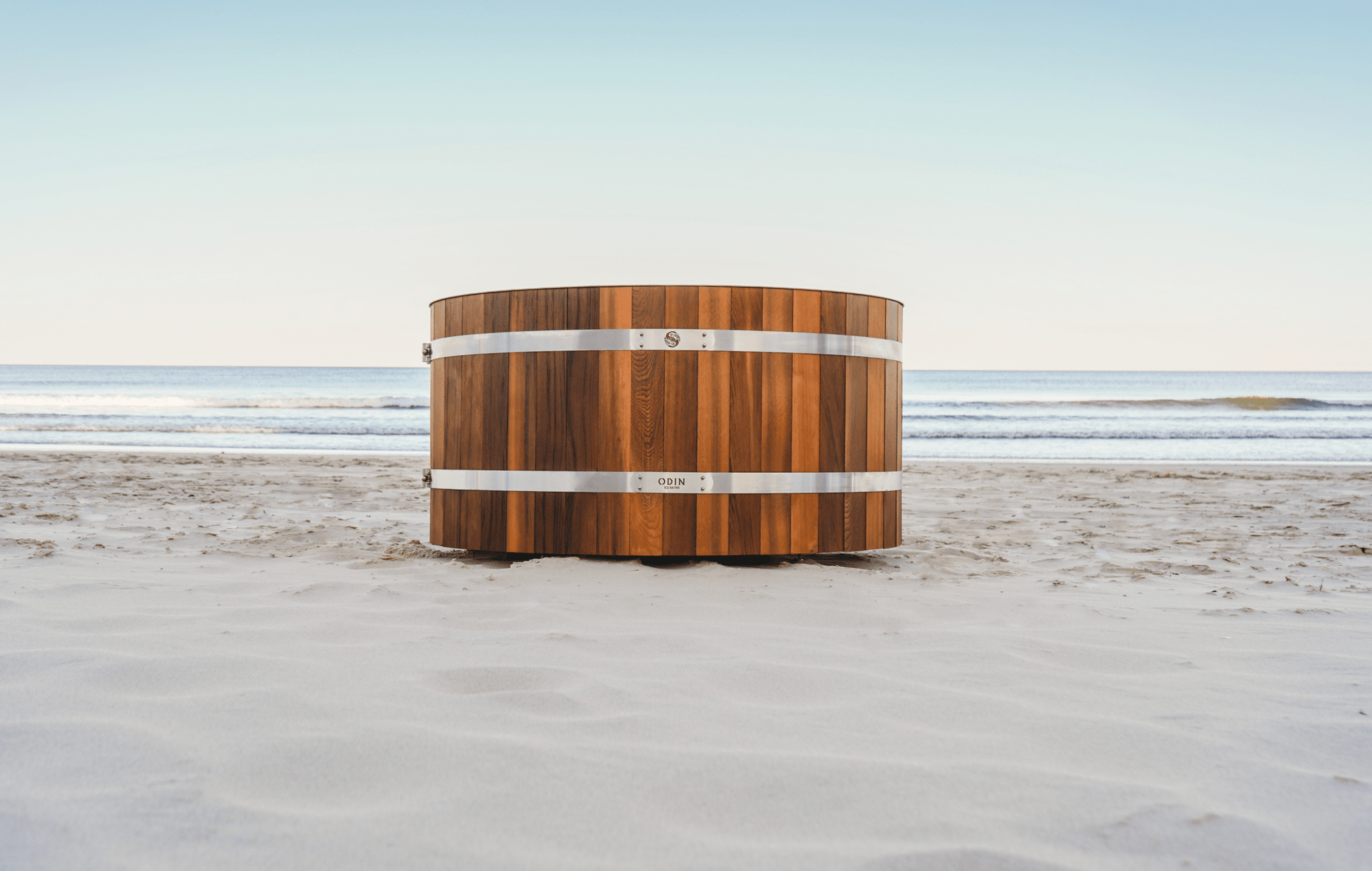

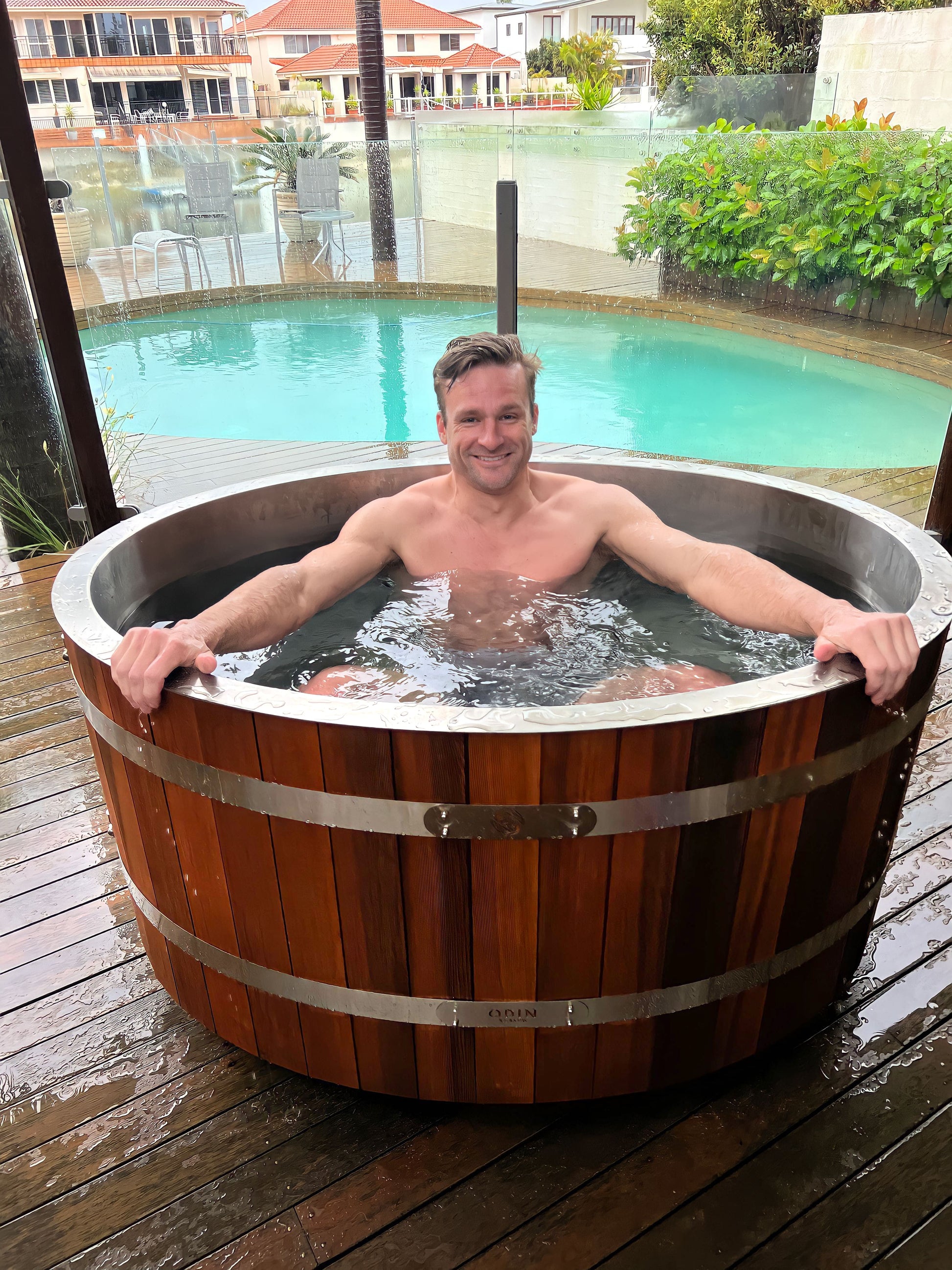

The Odin Original is comfortable for most users measuring up to approximately 6'2" (187cm).

The Odin XL is recommended for users over 6'2" or for those who want a bit of extra legroom.

The Odin Dual can comfortably accommodate two people plunging at once.

The Odin comes in 3 different sizes, with a Lite version and a Pro version available for each size.

Home-use is typically a couple of plunges a day at different times for up to 3-4 people.

Heavy home use - where more than 3-4 people will be using the Odin daily - and regions with high temperatures will require a Pro model.

Commercial-use typically consists of multiple users plunging per hour, multiple times a day. Businesses will require a Pro model to be eligible for the full warranty.

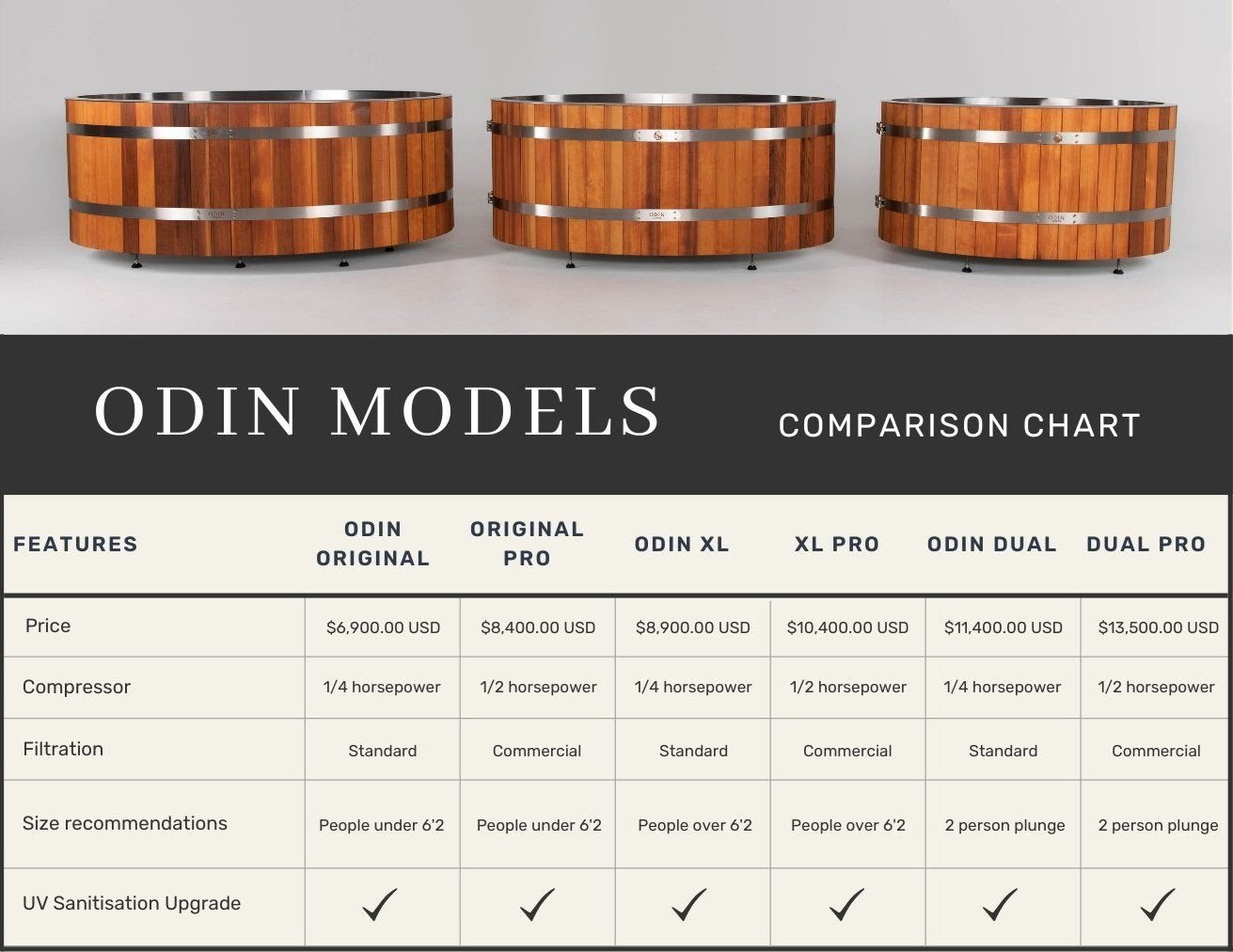

The difference between the Lite models and the Pro models is the compressors and the filtration system.

The Lite models use a 1/4 horsepower compressor, and the Pro models use a 1/2 horsepower compressor. The Pro versions can return to starting temperature after use much faster (10-15 minutes), compared to the Lite versions which take longer (45 - 60 minutes).

Odin Pro’s also have a larger filter to accomodate multiple plunges daily. We also offer a UV upgrade for extra sanitisation (in addition to the ozone) to ensure that you and your clients feel safe and clean for every plunge!

We recommend the Pro versions for hot climates and for commercial use as they will need a stronger compressor and filter to be used continuously and multiple times an hour.

For international orders, the Odin is shipped with the housing step detached and stored inside the tub for protection during transit. Upon receiving your Odin a refrigeration/HVAC technician will be needed gas the compressor prior to first use. (See FAQs for further info)

We recommend staining the cedar every 6-12 months to keep it fresh - just depending on your personal preferences.

For a home-use bath we recommend cleaning the reusable filter every 3-4 weeks, and the water can be replaced every 2-3 months, depending on your personal preferences.

For commercial-use we recommend cleaning the reusable filter every 1-2 weeks for your client peace-of-mind, and replacing the water every 1-2 months, depending on degree of use.

**Please note: the Odin is designed to be kept under cover and out of direct sunlight and harsh weather. Please see FAQs for more info.

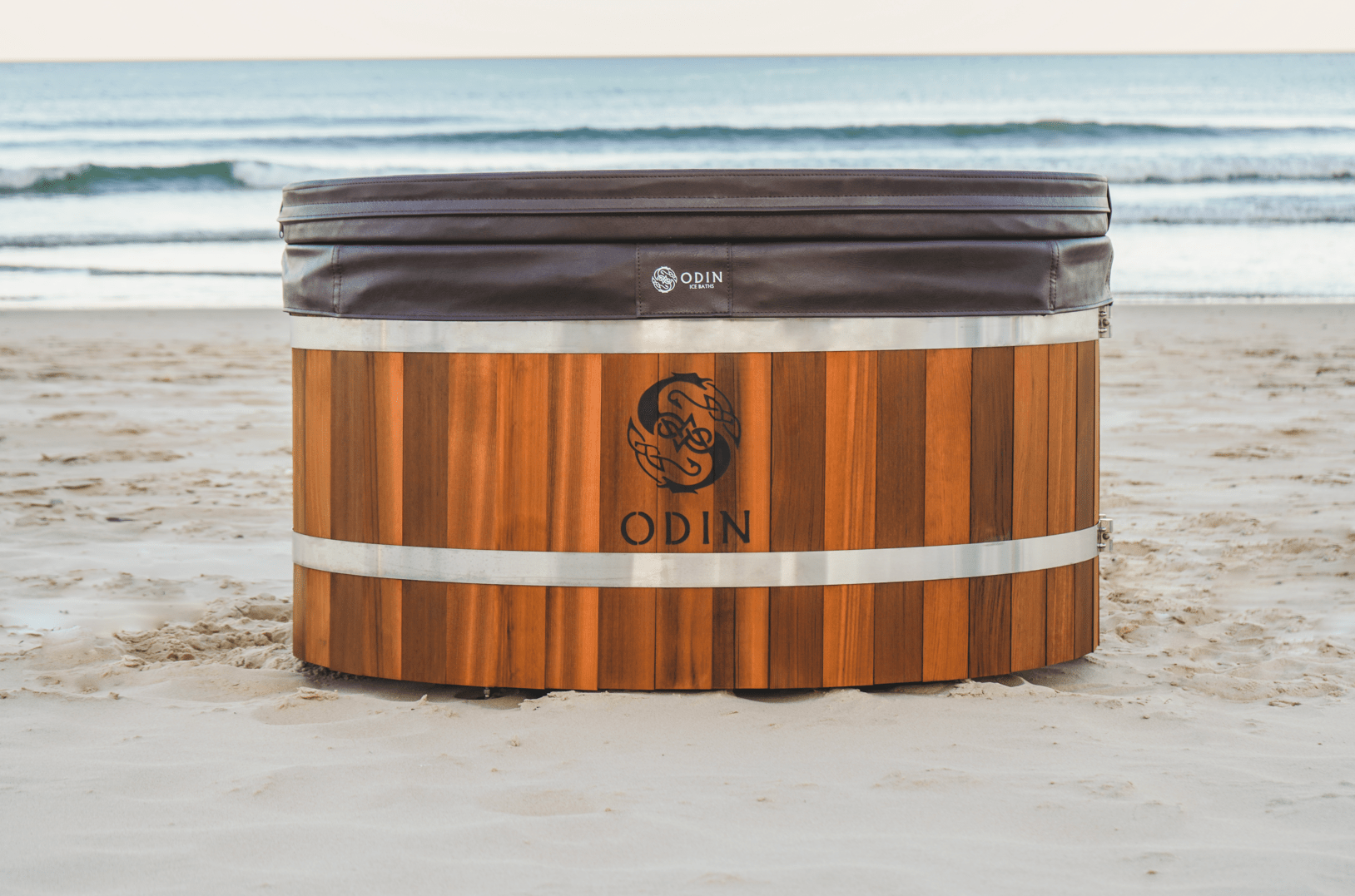

The Odin comes with an insulated lockable spa lid that is custom fit to your tub! It will keep the cold air in - allowing for a more economical plunge that uses less energy to stay cool.

All models of the Odin operate on 220-240v power and use a standard 10amp household power socket. Some international customers, such as those in the United States, will need to use a voltage converter, which can easily be purchased online.
- Lite models (1⁄4 HP compressor) require at least a 3000w converter.
- Pro-version models (1⁄2 HP compressor) require at least a 5000w converter.

Every model comes equipped with an RCD safety plug and is designed to be left on 24/7.

The Lite models use a similar amount of power as a large chest freezer; around 6-8kWh/day.
The Pro models use a similar amount as an extra-large chest freeze; around 10-12kWh/day.

The noise output is similar to that of a large chest freezer.

Unlike other “ice baths” that use external chillers, the Odin uses a cooling compressor that is connected to copper coils wrapped around the inner stainless steel tub walls for maximum energy efficiency.

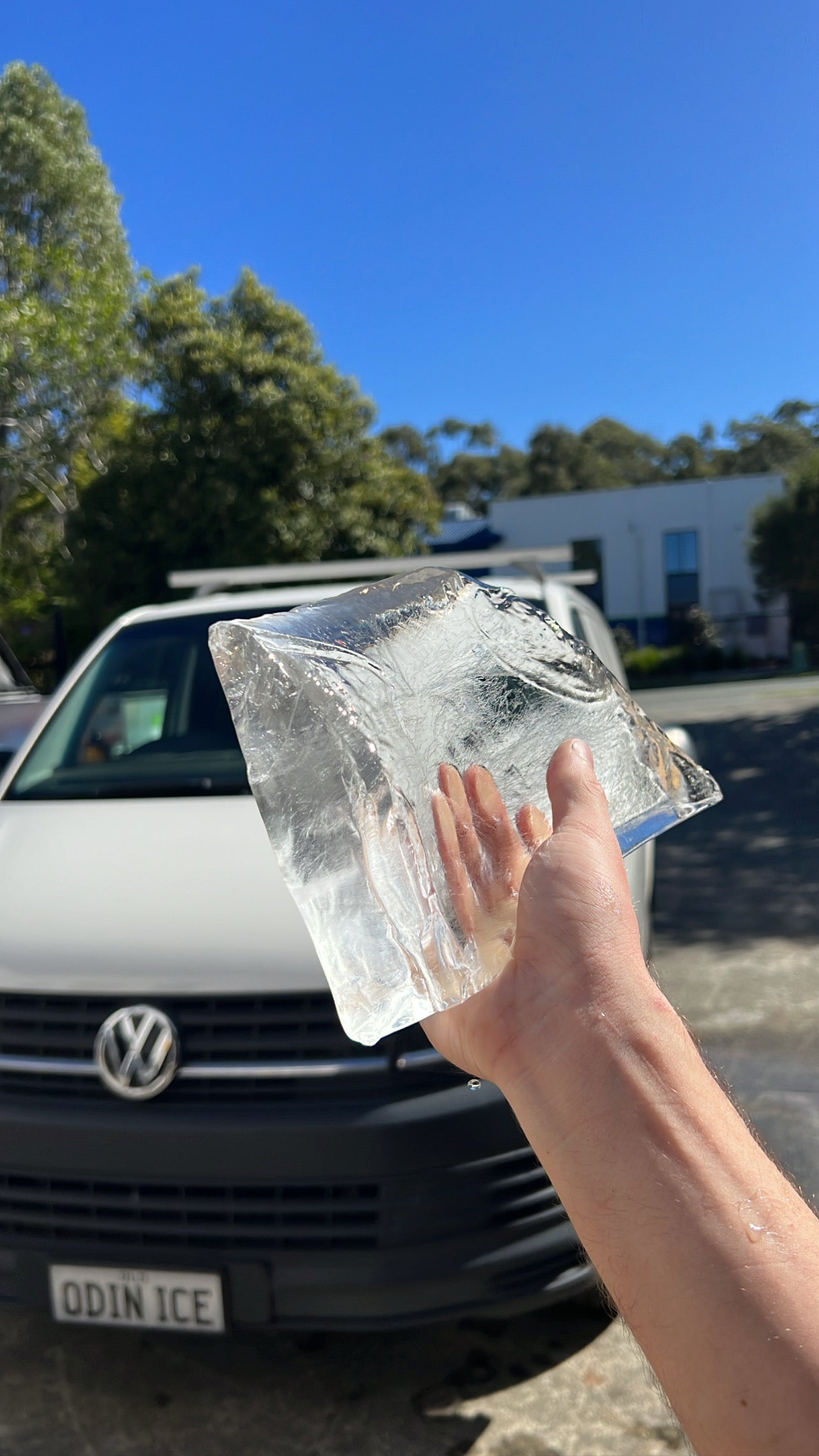

If left on at a low enough temperature the Odin will make its own ice! The ice will form in smooth waves on the walls, along the lines of the copper coil.

We use Tecumseh R404a cooling compressors. The Original version models use a 1/4 horsepower compressor and the Pro-version models use a 1/2 horsepower compressor.

The cooling system is purchased from a refrigerant company on the Gold Coast, who import them from Mexico.

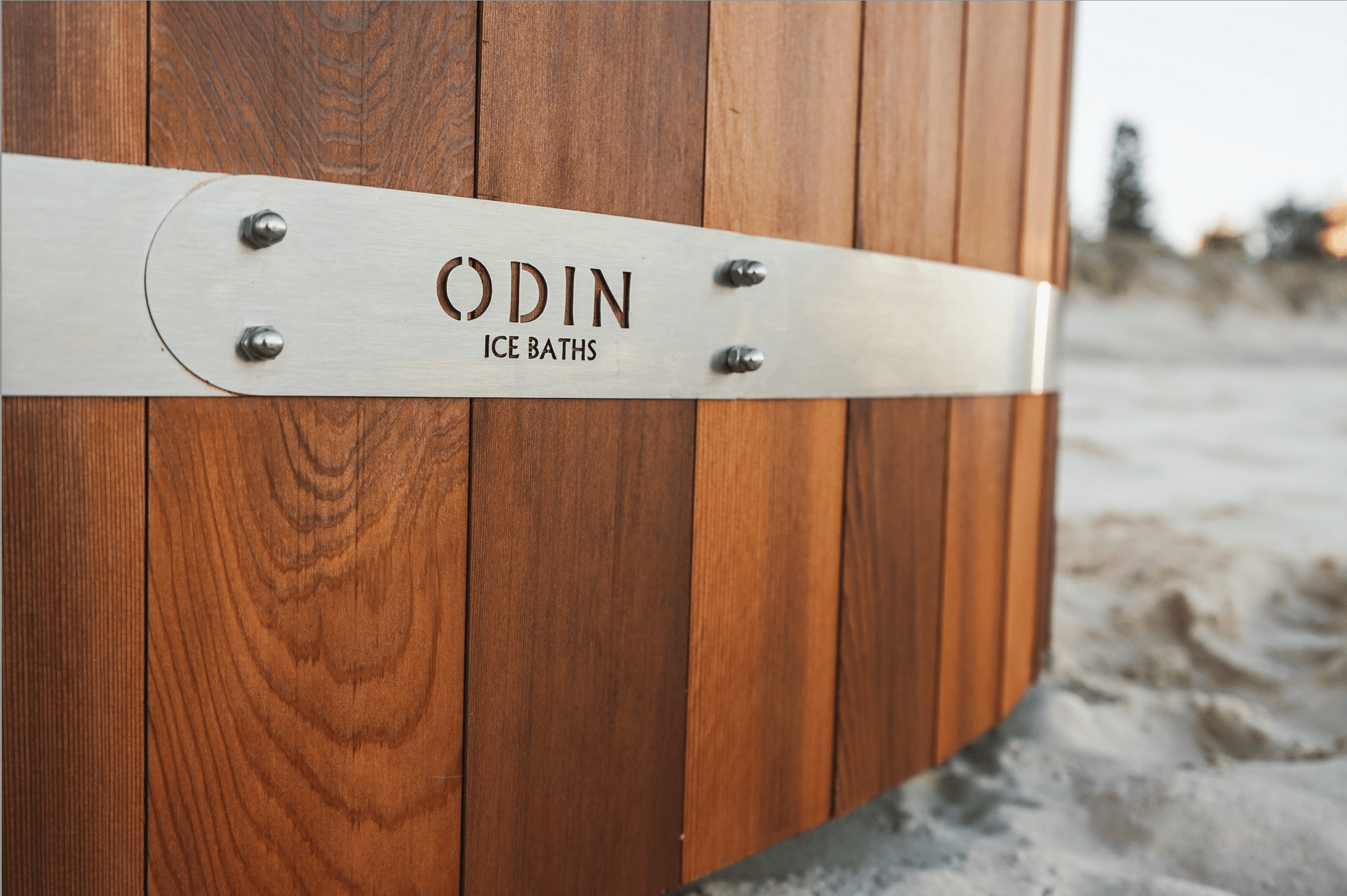

The Odin uses marine grade 316 stainless steel and 100% clear western red cedar. We start with a coil of stainless steel and a pile of raw cedar and hand-make the Odin into the product you know and love!

Five-year limited warranty on the cosmetic components, such as the stainless steel tub and the cedar.

Three-year warranty on the working components, which includes the cooling compressor, plumbing and electrical.

MEAUSREMENTS ARE IN MILLIMETRES (mm)

Interior = the inner stainless steel section of the Odin- the part that you sit in.

Exterior = the full outside dimensions of the Odin, including the housing step.

IMPORTANT: An additional 300mm (minimum) of clearance is needed in front of the housing step to allow sufficient room to access the filter within for maintenance. Please add an additional 300mm to the EXTERNAL WIDTH (W) measurements below when considering the total area required to house the Odin.

Original Lite Interior - 1200L × 800W × 600H

Original Lite External - 1300L × 1280W × 740H

Original Pro Interior - 1200L × 800W × 600H

Original Pro External - 1300L × 1370W × 740H

XL Lite Interior - 1500L × 800W × 600H

XL Lite Exterior - 1600L x 1310W × 740H

XL Pro Interior - 1500L × 800W × 600H

XL Pro Exterior - 1600L × 1410W × 740H

Dual Pro Interior - 1640L × 1040W × 600H

Dual Pro Exterior - 1740L × 1650W × 740H

MEAUSREMENTS ARE IN INCHES (in)

Interior = the inner stainless steel section of the Odin - the part that you sit in.

Exterior = the full outside dimensions of the Odin, including the housing step.

IMPORTANT: An additional 12in (minimum) of clearance is needed in front of the housing step to allow sufficient room to access the filter within for maintenance. Please add an additional 12in to the EXTERNAL WIDTH (W) measurements below when considering the total area required to house the Odin.

Original Lite Interior - 47.2 L × 31.5 W × 23.6 H approx.

Original Lite External - 51.2 L × 50.4 W × 29.1 H approx.

Original Pro Interior - 47.2 L × 31.5 W × 23.6 H approx.

Original Pro External - 51.2 L × 53.9 W × 29.1 H approx.

XL Lite Interior - 59 L × 31.5 W × 23.6 H approx.

XL Lite Exterior - 63.0 L x 51.6 W × 29.1 H approx.

XL Pro Interior - 59 L × 31.5 W × 23.6 H approx.

XL Pro Exterior - 63.0 L × 55.5 W × 29.1 H approx.

Dual Pro Interior - 64.6 L × 40.9 W × 23.6 H approx.

Dual Pro Exterior - 68.5 L × 64.9 W × 29.1 H approx.
